S2578 Pistol Grip Style Shift Knob | Eaton Fuller Roadranger | Red and Black Flippers | 13 Speed | New Genuine

S2578 Eaton Fuller Pistol Grip Shift Knob with Pattern – 13 Speed Roadranger | New Genuine OEM

New Genuine Eaton Fuller S2578 — Complete pistol-grip master shift knob and air valve assembly with printed shift pattern, designed specifically for 13-speed Roadranger transmissions.

This is the shift pattern style version (not the plain Fuller logo version). It features a comfortable ergonomic pistol grip with a two-position black range selector paddle (Up/Down for High/Low range) and a two-position red splitter button (Front/Back for high-side splitting). The top has the full 13-speed shift pattern printed for easy driver reference.

The Eaton Fuller 13-speed Roadranger uses a 5-position H-pattern in the main box, shifted twice — once in Low Range and once in High Range — plus a splitter in High Range.

In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.

Call 419-522-3320 for current pricing and availability.

Key Specifications

• Part Number: S2578
• Style: Pistol Grip Master Shift Knob with Printed Shift Pattern (Range + Splitter)
• Range Selector: Two-position black paddle (Up/Down – High/Low Range)
• Splitter Button: Two-position red button (Front/Back – High Side Splitter)
• Mounting: 1/2"-13 threaded main port (threads onto shifter lever) + Includes mounting hardware

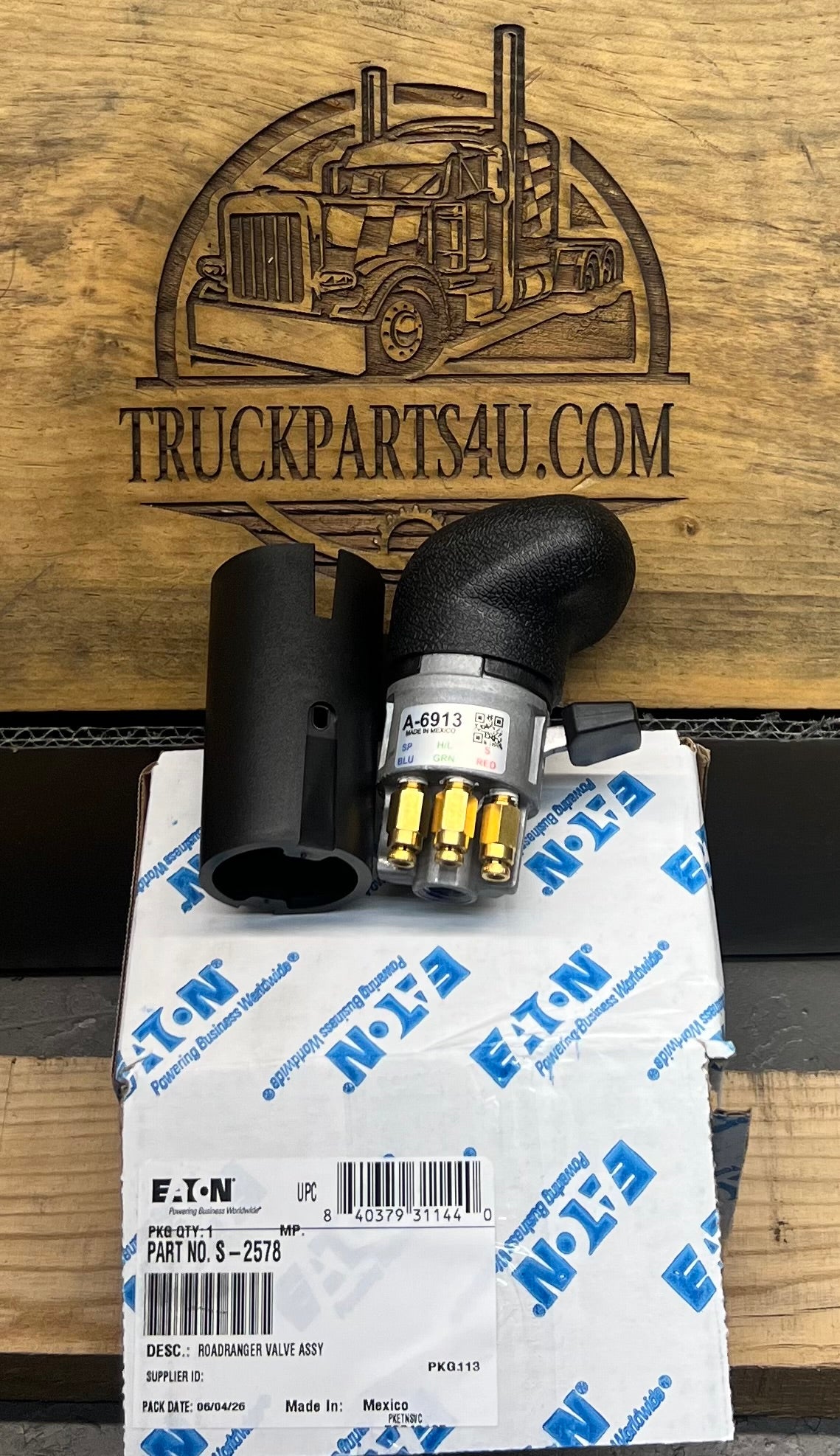

• Air Fittings: Included – Comes with 4x Fuller 84005 brass fittings for 5/32" air tubing. Bottom ports are 1/16" NPT.
• Warranty: Backed by Eaton Fuller Manufacturer Warranty

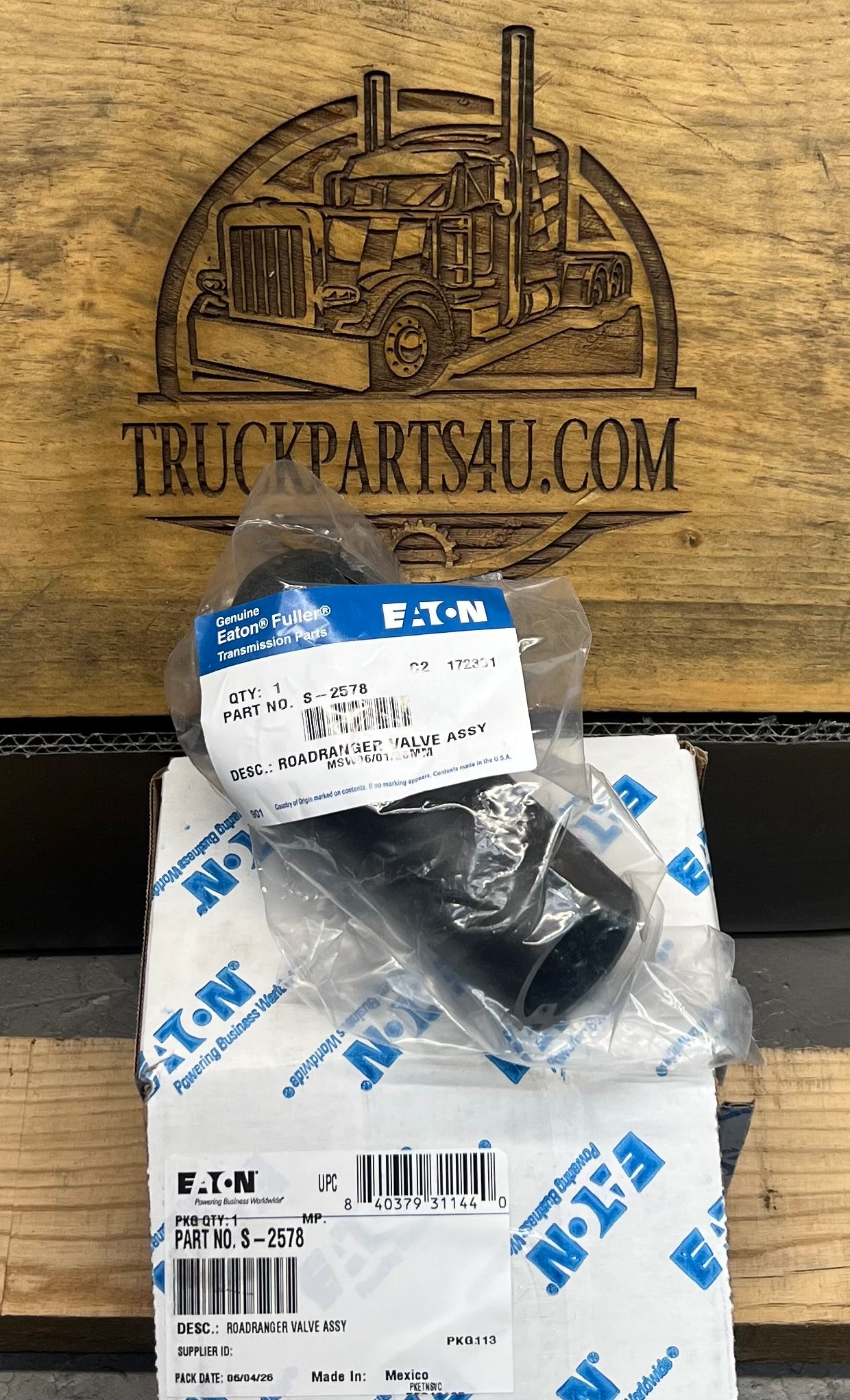

• Condition: New Genuine Eaton Fuller OEM – Ships in original packaging

How the S2578 Roadranger Valve Works

Low Range Operation

Constant air pressure is supplied from the slave valve to the Roadranger valve “S” port (1). For LO range (range lever down), splitter button rearward, air flows out of the Roadranger valve “P” port.

High Range Operation

For HI range (range lever up), splitter button rearward, the lever prevents the air from passing through the Roadranger valve. Air now flows through the “H/L” port into the Roadranger valve.

Splitter Operation (High Range)

For splitter operation (range lever up), splitter button forward, air flows through the “H/L” port and air flows out of the Roadranger valve “SP” port. Air pressure which was in the outlet line is exhausted out the bottom of the Roadranger valve.

HI Range Overdrive

For HI range overdrive (range lever up), actuator button forward, air flows out of the Roadranger valve “SP” port. Air pressure which was in the outlet line is exhausted out the Roadranger valve bottom.

13-Speed Roadranger Shift Pattern

The Eaton Fuller 13-speed uses a 5-position H-pattern in the main box, shifted twice — once in Low Range and once in High Range — plus a splitter in High Range.

Shifting Tips:

• Toggle the black Hi/Lo paddle before reaching the top of the gear you're leaving.
• Pre-select the red splitter button before making the shift — not after.

Applications & Fitment

Designed for Eaton Fuller 13-Speed Roadranger transmissions including:

• RTLO-16713A (Double Overdrive)
• RTLO-18913A (and RTLOF18913A, RTLO16913A, RTLOF16913A)
• RTO / RTX Series: RTO12513, RTO14613, RTO15613 and similar
• RTLO Low Inertia Series: RTLO16713A, RTLO16913A, RTLO18913A, RTLO20913A, RTLO22913A

Fits All Major Truck Makes

This S2578 shift knob fits any truck equipped with a compatible Eaton Fuller 13-speed Roadranger transmission.

• Peterbilt
• Kenworth
• Freightliner
• International / Navistar
• Volvo
• Mack
• Western Star
• Autocar
• and many others

Note: This is the printed shift pattern style knob. The version with the standard Fuller logo on top is A6913. This is not the same as the A6909 (9/10-speed) or A-6915 (15-speed).

What’s Included

• 1 × Eaton Fuller S2578 Pistol Grip Shift Knob Assembly with Printed Pattern
• 4 × Fuller 84005 Brass Air Fittings (for 5/32" tubing)
• Factory OEM packaging
