RTLO18913A Transmission | Eaton Fuller Roadranger | 13-Speed Double Overdrive 0.86 & 0.73 | 1850 lb-ft | Core Exchange | Reman
RTLO18913A Transmission | Eaton Fuller Roadranger | 13-Speed Double Overdrive 0.86 & 0.73 | 1850 lb-ft | Core Exchange | Reman
Share
RTLO-18913A | Eaton Fuller 13-Speed Roadranger Transmission — Remanufactured by DPX (Double Overdrive)
The Eaton Fuller RTLO-18913A (also known as RTLOF18913A, RTLO16913A and RTLOF16913A) is the current updated version of the 16913 series. It is a heavy-duty 13-speed with double overdrive (0.86 & 0.73) and 2 reverse ranges. Remanufactured in Mansfield, Ohio by Discount Parts Exchange - DPX. Every unit is completely torn down, cleaned, inspected, and rebuilt with new Fuller synchros, bearings, and seals for maximum reliability in over-the-road and line-haul applications.
Call DPX to confirm: 419-522-3320.
Highlights
- Model: RTLO-18913A / RTLOF-18913A (updated 18913 series – replaces all 16913 series units)
- Gears: 13 forward / 2 reverse
- Final Overdrive: 0.73 (double OD: 0.86 and 0.73)
- Torque Rating: 1,850 lb-ft
- Dry Weight: ~716 lb
- Length: 33.1 in (841 mm)
- Internal Oil Pump: Yes
- Shift System: Manual main + air range & splitter
- Applications: Over the road, on highway, and heavy-duty Class 8 line-haul
Gear Ratios — Forward (RTLO-18913A)
| Gear | Ratio |
|---|---|
| 8th High (OD2) | 0.73 |
| 8th Low (OD1) | 0.86 |
| 7th High | 1.00 |
| 7th Low | 1.17 |
| 6th High | 1.38 |
| 6th Low | 1.62 |
| 5th High | 1.95 |
| 5th Low | 2.29 |
| 4th | 3.23 |
| 3rd | 4.43 |
| 2nd | 6.11 |
| 1st | 8.64 |
| Low | 12.31 |
Gear Ratios — Reverse (RTLO-18913A)
| Range | Ratio |
|---|---|
| Reverse High | 3.50 |
| Reverse Low | 13.22 |
Overall ratio coverage: 19.7:1

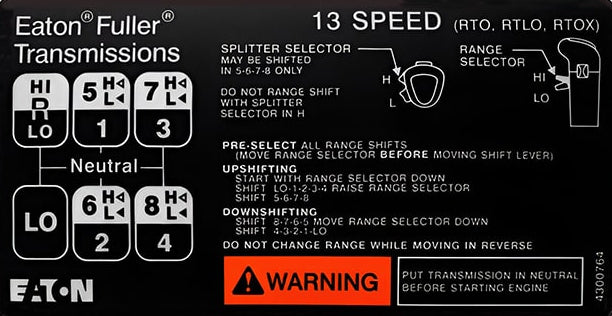

Shift Pattern – RTLO-18913A 13-Speed
Official Eaton Fuller 13-Speed Shift Pattern: Plate 4300764
Key Operating Notes:
- Pre-select range shifts — move range selector before moving the main shift lever
- Do not move range selector while splitter is in High (H)
- Use the splitter button on the shift knob for half-steps (especially useful in 5-8)
- WARNING: Always put transmission in neutral before starting the engine
What’s Included
- Remanufactured Eaton Fuller RTLO-18913A transmission (updated 18913 series) rebuilt to factory spec by DPX
- 12-month, unlimited-mileage parts-only warranty
- Tech support from DPX during installation and break-in
Related Products
| Part Number | Mfr | Description |
|---|---|---|

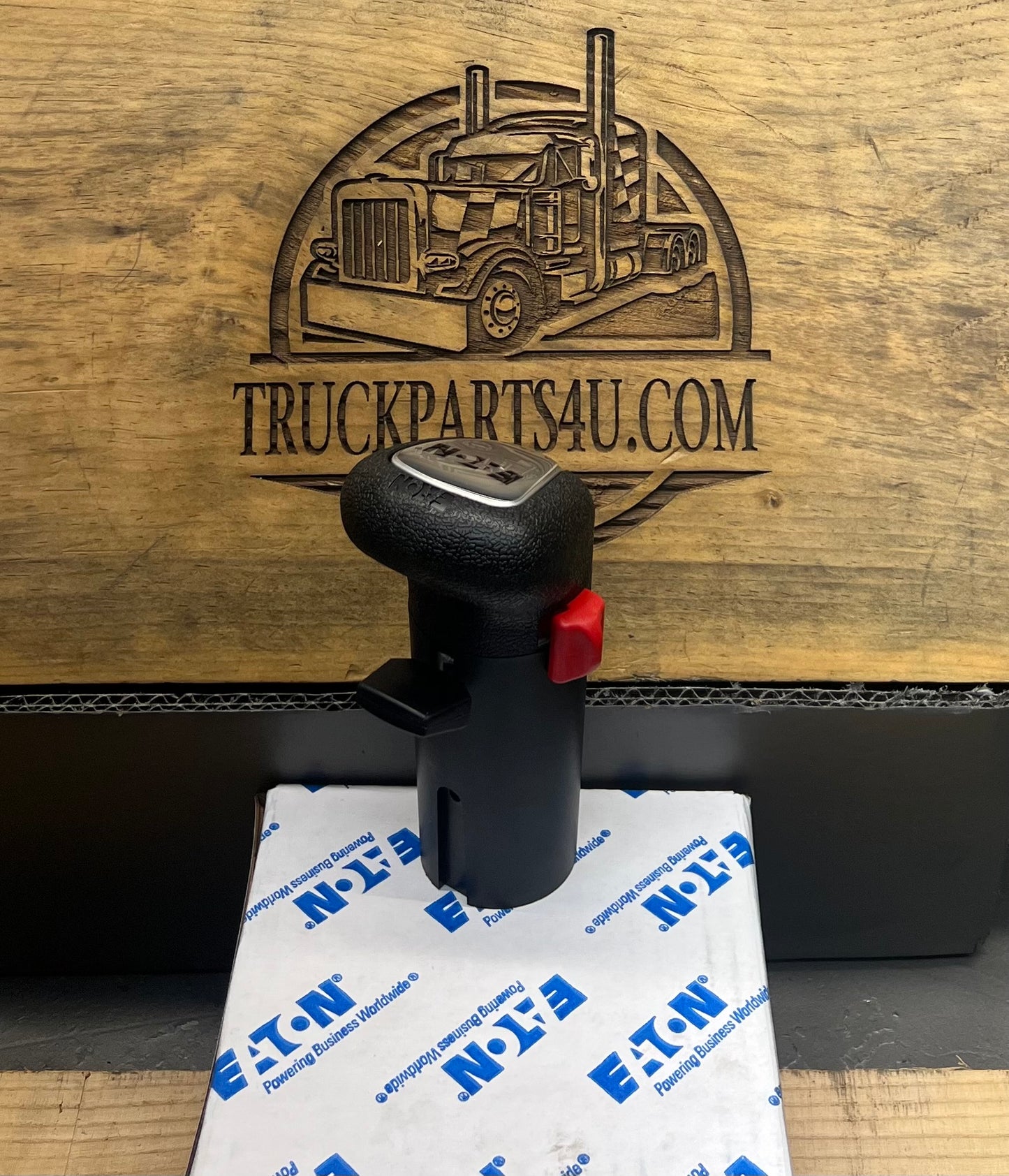

| A6913 | Eaton Fuller | Pistol Grip Shift Knob – 13-Speed (Standard) |
| S2578 | Eaton Fuller | Pistol Grip Shift Knob with Printed Shift Pattern – 13-Speed |
Recommended Lubricant
Use Eaton PS-386 approved synthetic SAE 50 manual transmission fluid (e.g., Roadranger SAE 50). Do not use engine oil.
Core Exchange Policy
- Sold on exchange: Returned core must be like-for-like, complete, and rebuildable
- Deductions may apply for: Cracked housings, missing/burnt internals, low-lube or water damage, or non-matching cores
Shipping
- Ships via LTL motor freight to verified commercial addresses only
- Forklift or dock required (liftgate available upon request)
- No residential delivery
Image Disclaimer
Photos shown are representative; final appearance may vary by ratio and casting revision.
Call to Order
Call Discount Parts Exchange - DPX for pricing and availability: 419-522-3320
DPX Drivetrain Tools Hub
Free tools built by rebuilders for truckers and fleets — Road Speed & Ratio Calculator, PTO shimming procedure, gear ratio comparison charts, and our full IPL library for instant parts identification.
Open DPX Drivetrain Tools Hub →
Reference Documentation
For detailed exploded-view diagrams and part numbers, download the official Eaton® Fuller RTLO-18913A Transmission Illustrated Parts List.
📄 Download Eaton Fuller RTLO-18913A Transmission Illustrated Parts List (PDF)
