687.35-AM U-Joint Kit | GWB 2035 / Dana DT68735 | GKN | New Aftermarket

687.35 | Premium Aftermarket U-Joint Kit | GWB 2035 / Dana DT68735 | New

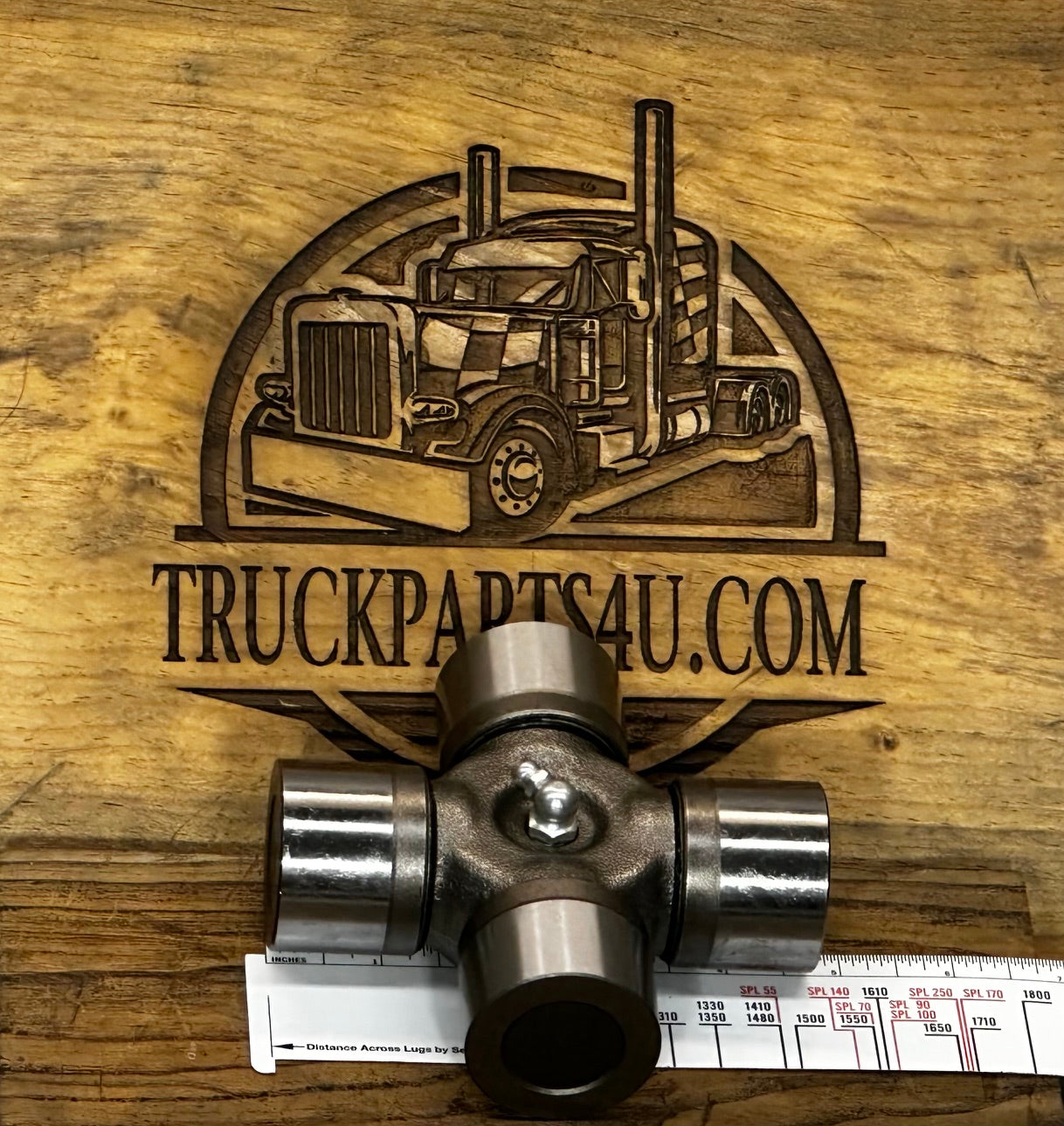

New Premium Aftermarket 687.35 universal joint kit — a complete heavy-duty U-joint assembly designed as a replacement for compatible GWB 2035, Dana DT68735, and GKN-style industrial driveline applications.

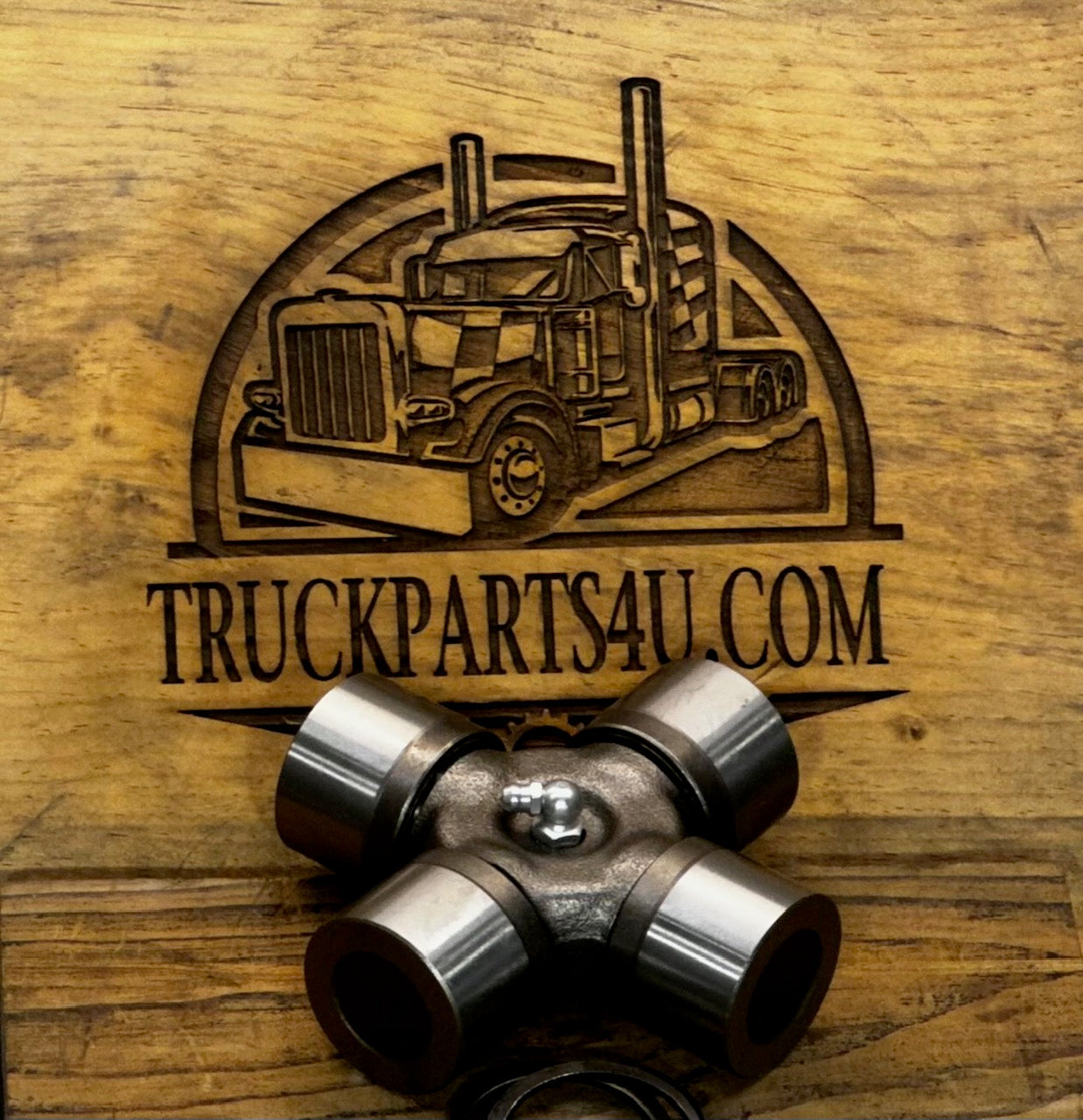

This outside-snap-ring U-joint features 42.0 mm bearing caps and an overall width of 119.4 mm. Built for demanding industrial and off-highway driveshaft systems, the kit includes the universal joint, snap rings, and lubrication fitting. In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.

Call to confirm availability: 419-522-3320

Key Specifications

• Part Number: 687.35
• Manufacturer: Premium Aftermarket
• Type: Heavy-Duty Universal Joint Kit
• Series: GWB 2035 / Dana Industrial 687 Series
• Retainer Style: Outside Snap Ring
• Cap Diameter: 1.654" / 42.0 mm
• Overall Width: 4.701" / 119.4 mm
• Condition: New Premium Aftermarket
• Warranty: Sold As-Is, No Warranty

Dimensions

Applications & Fitment

Designed for compatible heavy-duty industrial and off-highway driveshaft systems using a GWB 2035-series or equivalent outside-snap-ring universal joint.

• Industrial driveshaft assemblies
• Mining and material-handling machinery
• Sawmill and lumber-processing equipment
• Paper-mill machinery
• Industrial shakers and vibratory equipment
• Ski-lift and other heavy mechanical drive systems

Important: Always verify part number, bearing-cap diameter, overall width, snap-ring style, driveshaft series, and compatibility before ordering.

Cross References

• GWB: 687.35
• GWB Series: 2035
• Dana: DT68735
• Alternate Reference: GWB 68735

Cross-reference numbers are for identification purposes only. Verify exact specifications before purchase.

What’s Included

• 1 × Premium aftermarket universal joint
• 4 × Outside snap rings
• 1 × Lubrication fitting
• Plain brown packaging
• Yokes, driveshaft components, installation tools, and additional hardware are not included
