511.005 | SWF / Sprague 12V Illuminated Rocker Switch | Terex 6100259M91 Ride Control | New Genuine NOS

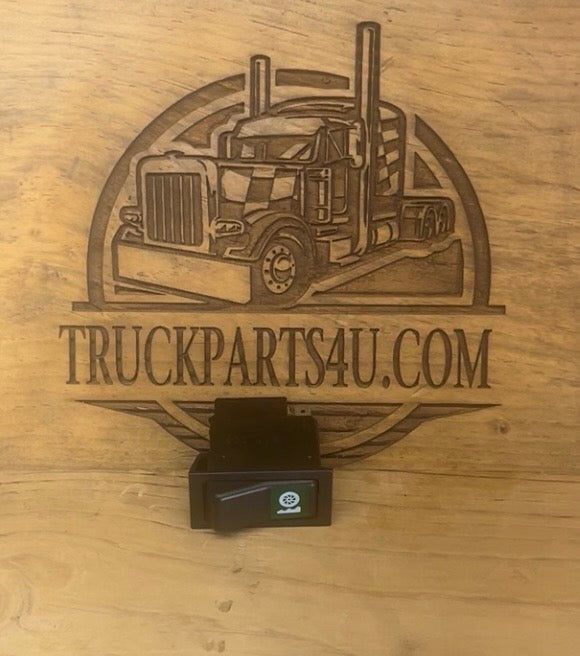

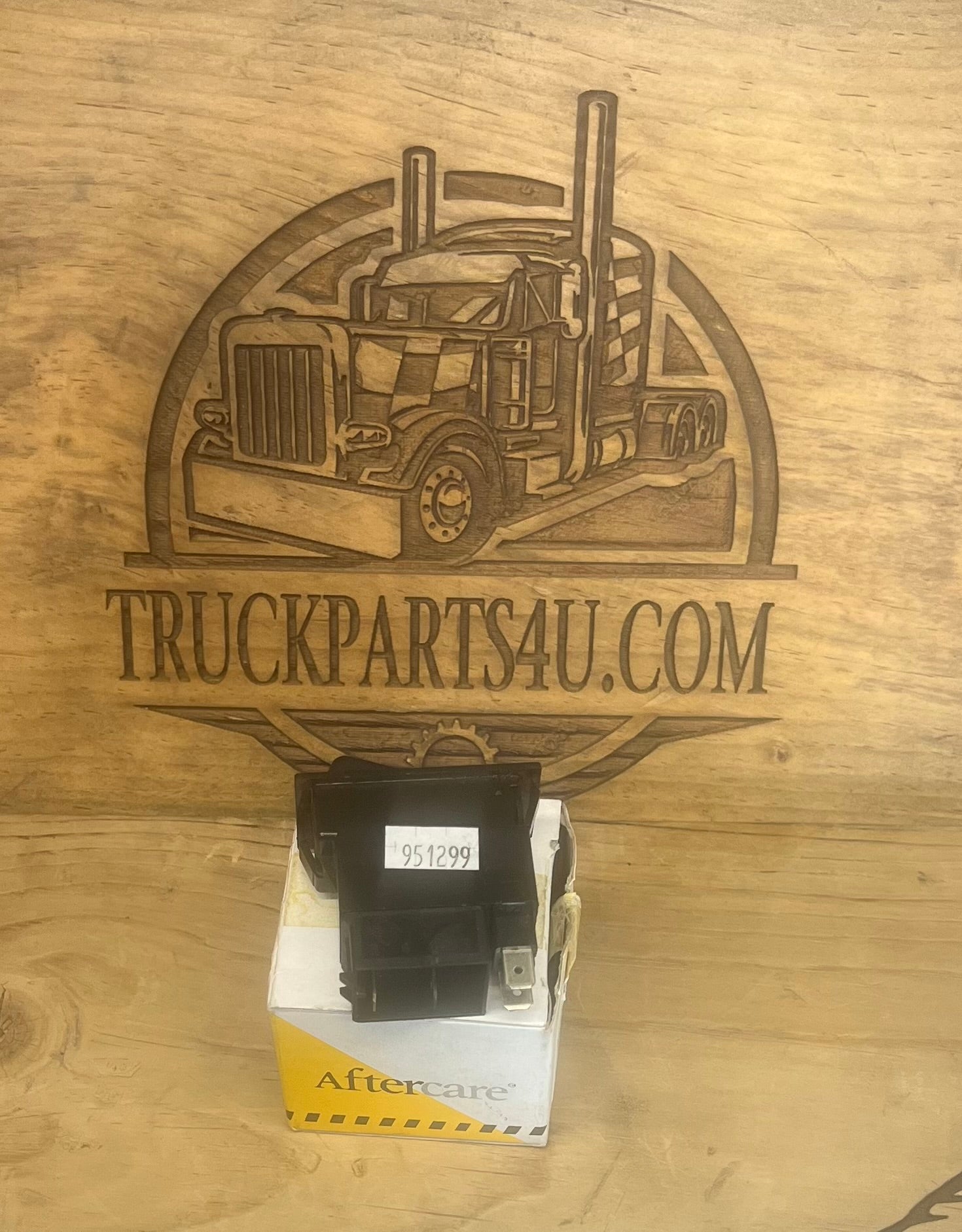

New Genuine SWF / Sprague 511.005 (Terex 6100259M91 cross-reference) — Heavy-duty 12V illuminated rocker switch with pilot light function. This OEM-quality switch provides clear visual status indication and reliable On/Off control for dash, panel, and auxiliary circuits in demanding environments.
Commonly used as a ride control switch on Terex construction and material-handling machines, as well as in heavy-duty trucks, equipment, RVs, and industrial electrical panels. Features location and function lighting (illuminates with dash lights and brightens when activated) plus a multi-pin rear connector for easy plug-and-play installation.
In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.
Call to confirm availability: 419-522-3320
Key Specifications
-
Part Number: 511.005 (SWF / Sprague)
-
Terex Cross-Reference / Application: 6100259M91 (Ride Control Switch)
-
Type / Model: SPST On/Off Rocker Switch with Pilot Light Illumination
-
Voltage: 12V
-
Lighting: Location lighting (activates with park/headlights) + Function lighting (brightens when switch is on)
-

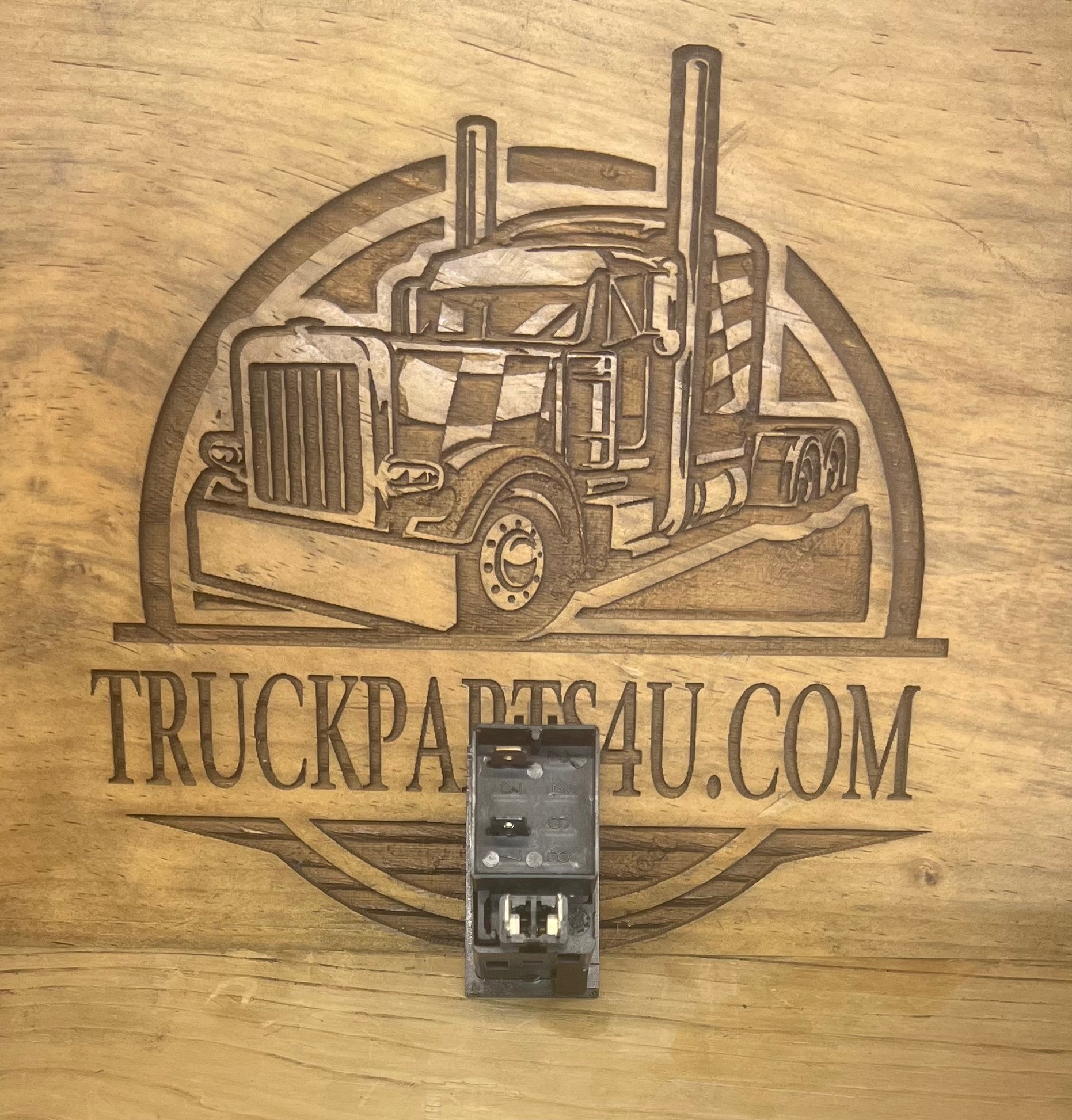

Terminals / Connector: 4-pin / 4-terminal rear connector
-
Protection: IP67 dust and spray-water resistant
-
Construction: Durable OEM design with incandescent pilot lamps, smooth retaining clips
-
Condition: New Genuine (NOS) – Unused Old Stock
-
Warranty: Sold As-Is, No Warranty
Applications & Fitment
Direct fit or cross-reference for Terex ride control systems and compatible electrical control applications across multiple industries:
- Terex construction equipment, loaders, and material handlers (ride control function)
- Heavy-duty truck dash and electrical control panels
- Commercial vehicles and fleet equipment
- RV and motorhome auxiliary lighting/control circuits
- Industrial machinery and panel-mounted switch applications
- Pilot light / status indication circuits requiring illuminated rocker switches
Important: Always verify exact part number, voltage rating, terminal configuration, connector style, switch function/legend, and mounting dimensions before ordering or installation. Confirm compatibility with your specific Terex model or application.
What’s Included
- 1 × SWF / Sprague 511.005 12V Illuminated Rocker Switch (Terex 6100259M91 application)
- OEM switch assembly as supplied from new old stock
- Mounting hardware, wiring harness, or faceplate not included unless noted
