170-4-481-1X | Eaton Fuller Manual Transmission End Yoke | Dana Spicer SPL170 | 10-Spline

170-4-481-1X | Dana Spicer SPL170 Series

End Yoke | 10-Spline | New Genuine

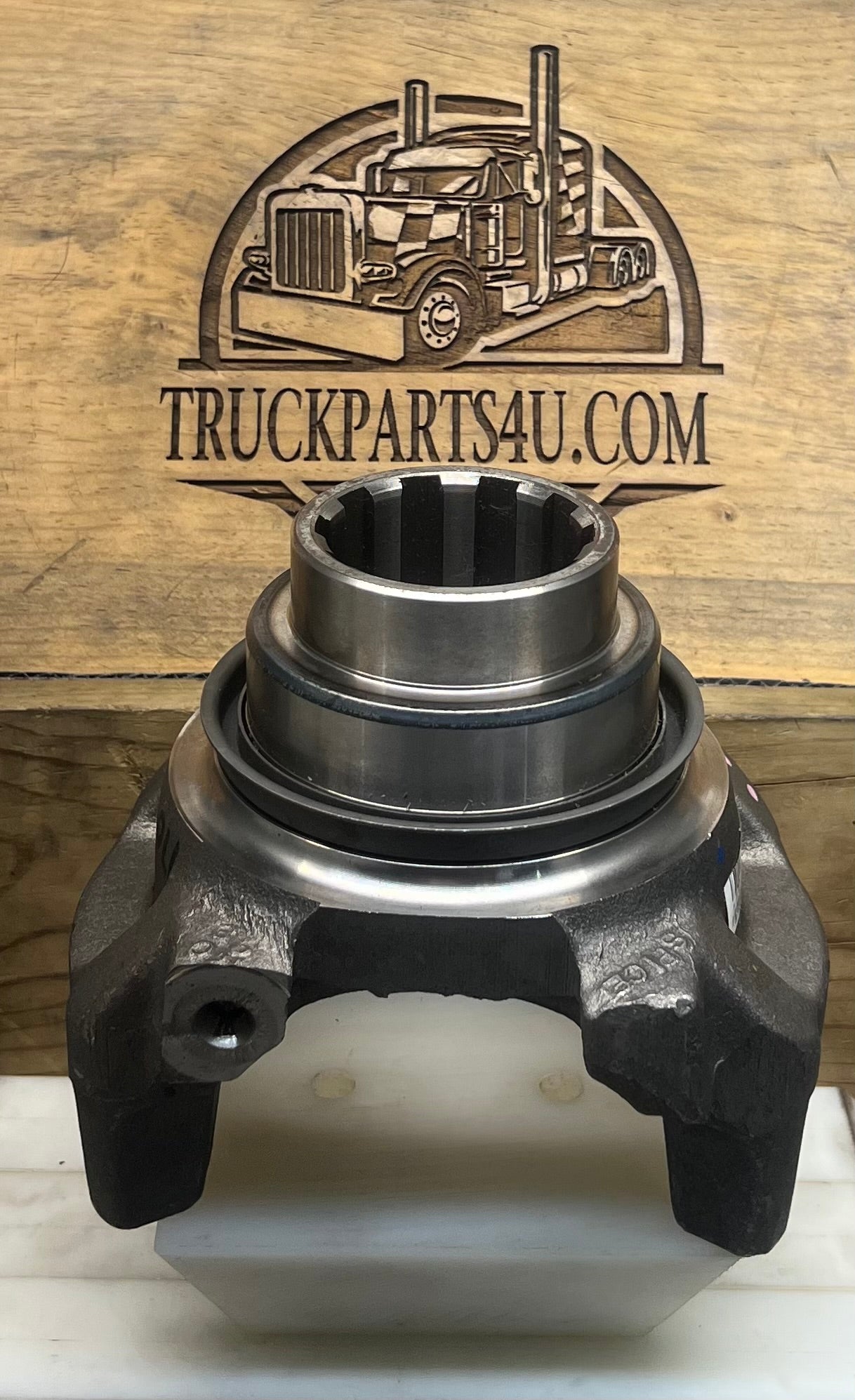

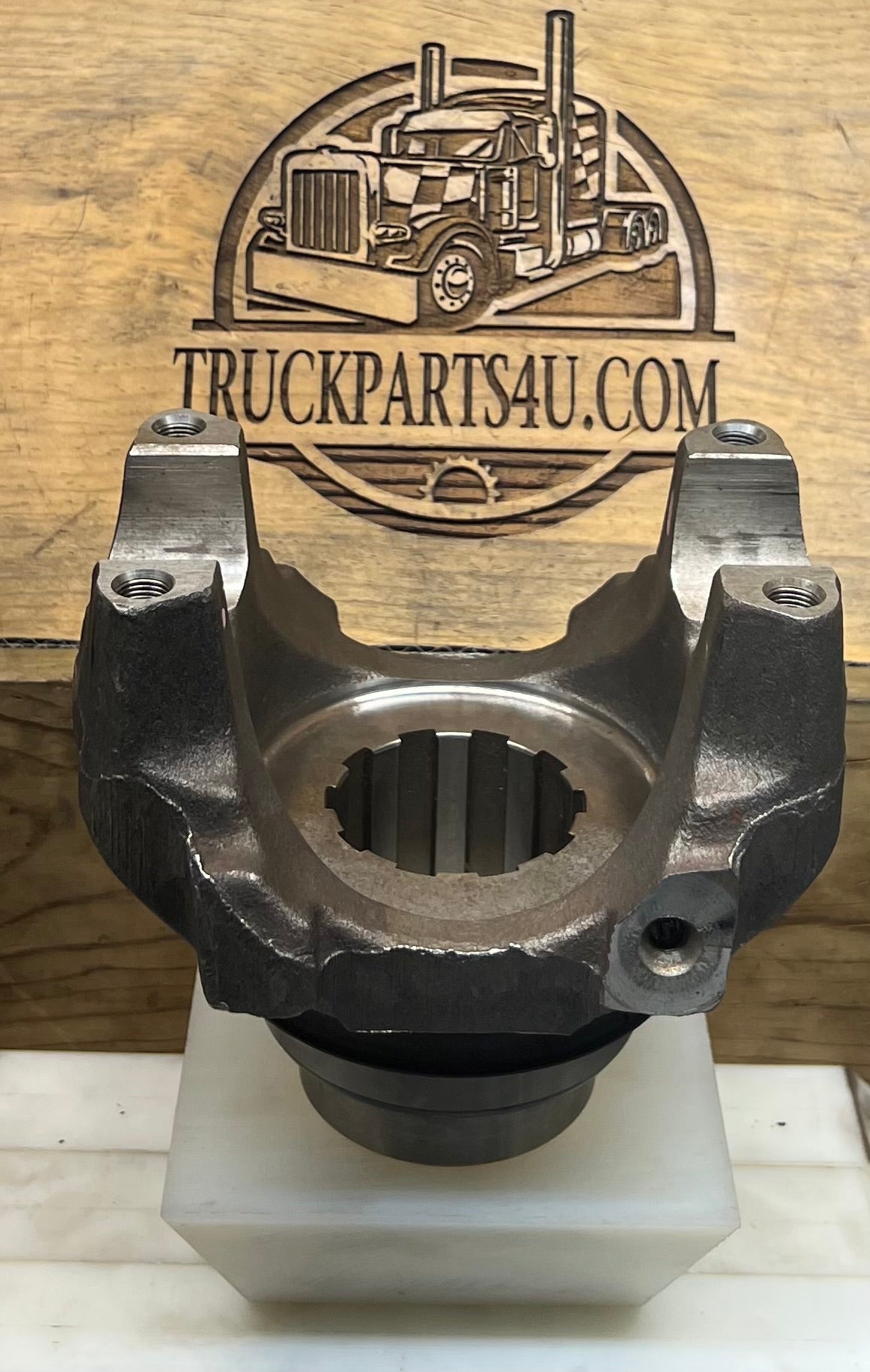

New Genuine Dana Spicer 170-4-481-1X — Heavy-duty manual transmission output end yoke for SPL170 series driveline applications. Features a 10-spline, 2.500" major-diameter splined bore. The hub is machined for the speedometer rotor. In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.

Call to confirm availability: 419-522-3320

Key Specifications

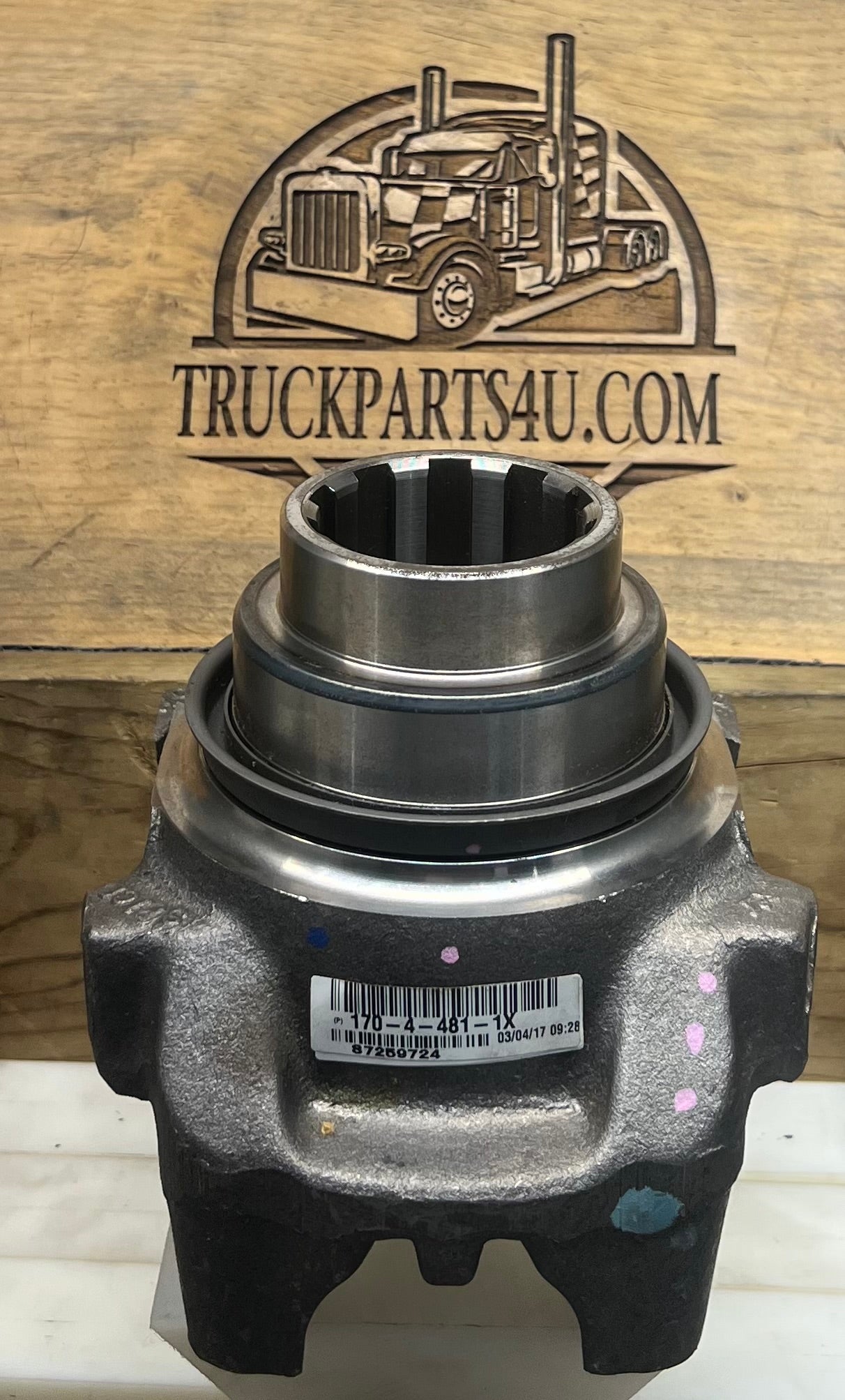

• Part Number: 170-4-481-1X
• Manufacturer: Dana Spicer
• Type: Manual Transmission Output End Yoke
• Driveline Series: SPL170
• Yoke Style: HR
• Bore Type: Splined Hole
• Spline Count: 10
• Major Spline Diameter: 2.500"
• Hub Diameter: 3.750"
• Yoke Bearing Dimension: 2.166"
• Outside Yoke Dimension: 6.456"
• Length Through Hole: 3.000"
• Centerline to End of Hub: 5.750"
• Material: Steel
• Base Part Number (no slinger): 170-4-471-1
• Slinger: 231616
• Condition: New Genuine Dana Spicer
• Warranty: Sold As-Is, No Warranty

Applications & Fitment

Designed for heavy-duty commercial drivetrain systems using a Dana Spicer SPL170 series 10-spline transmission output yoke.

Eaton Fuller Roadranger Transmissions (RT & RTO):

• RT613 • RT910 • T955AL • RT958LL • RT1110 • RT6613
• RT7608LL • RT8608LL • RT8709 • RT11609 • RT12609
• RT11608LL • RT11708LL • RTO12609

Meritor Transmissions:

• RM9125A • MO11G10A-M11 • RM10115A

Dana Spicer Transmissions:

• LPSO140-10S • PSO150-10S • PS125-10 • PS125-9A • PS140-9A

Important: Always verify part number, driveline series, spline count, spline diameter, hub diameter, bearing dimensions, and exact transmission model before ordering. Hub is machined for speedometer rotor.

Cross References

• Dana Spicer: 170-4-481-1X
• International: 3513675C91 • 17044811X • E17044811X
• Meritor: 170MU51P5 • 176MU41P20
• Freightliner / DTNA: SP17044811X

Cross-reference numbers are for identification purposes only. Verify exact specifications before purchase.

What’s Included

• 1 × Dana Spicer 170-4-481-1X SPL170 End Yoke
• Installed slinger
• U-joint, straps, bolts, driveshaft, and additional hardware not included
