RTLO-18918B | RTLO16718B | RTLO20918B | Eaton Fuller 18-Speed Roadranger Transmission — Remanufactured by DPX (Double Overdrive)
The Eaton Fuller RTLO-18918B (also known as RTLOF18918B, RTLO16918B, RTLOF16918B, RTLO16718B, and RTLO20918B) is the current updated version of the 16918 series. It is a heavy-duty 18-speed with double overdrive (0.86 & 0.73) and 4 reverse gears. Remanufactured in Mansfield, Ohio by Discount Parts Exchange - DPX. Every unit is torn down, cleaned, inspected, and rebuilt with new bearings, seals, and synchros for reliable over the road and heavy hauling performance.
Call DPX to confirm: 419-522-3320.
Highlights
-
Model: RTLO-18918B (updated 18918 series – replaces all 16918 series units; also RTLO16718B, RTLO20918B)
-
Gears: 18 forward / 4 reverse
-
Final Overdrive: 0.73 (double OD: 0.86 and 0.73)
-
Torque Rating: 1,850 lb-ft
-
Dry Weight: ~716 lb
-
Length: 33.1 in (841 mm) — measured from the face of the clutch housing to the front bottoming surface of the companion flange or yoke. This is the standard method we use when verifying proper fitment in the truck.
-
Internal Oil Pump: Yes
-
Shift System: Manual main; air range & splitter (aux section)
-
Shift Knob: A-6918 Pistol Grip (recommended for this 18-speed transmission)
-
Applications: Over the road and heavy hauling, grades, high-gross combinations
Gear Ratios — Forward (RTLO-18918B)
RTLO-18918B Forward Ratios
| Gear |
Ratio |
| 8th High (OD2) |
0.73 |
| 8th Low (OD1) |
0.86 |
| 7th High |
1.00 |
| 7th Low |
1.17 |
| 6th High |
1.38 |
| 6th Low |
1.62 |
| 5th High |
1.95 |
| 5th Low |
2.29 |
| 4th High |
2.73 |
| 4th Low |
3.20 |
| 3rd High |
3.74 |
| 3rd Low |
4.38 |
| 2nd High |
5.16 |
| 2nd Low |
6.05 |
| 1st High |
7.30 |
| 1st Low |
8.56 |
| Low High |
12.29 |
| Low Low |
14.40 |
Gear Ratios — Reverse (RTLO-18918B)
RTLO-18918B Reverse Ratios
| Range |
Ratio |
| Reverse High-High |
3.43 |
| Reverse High-Low |
4.03 |
| Reverse Low-High |
12.85 |
| Reverse Low-Low |
15.06 |
Overall ratio coverage: 19.7:1

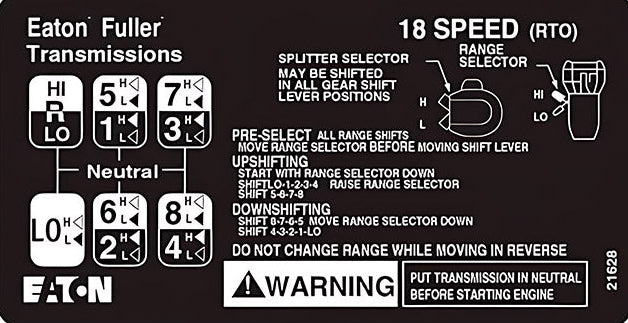

Shift Pattern – RTLO-18918B 18-Speed
Official Eaton Fuller 18-Speed Shift Pattern: Eaton Fuller 21628
Key Operating Notes
- Pre-select all range shifts — move range selector before moving the main shift lever
- Do not move range selector while splitter is in High (H)
- Use the splitter button on the shift knob for half-steps (especially useful in upper gears)
-
WARNING: Always put transmission in neutral before starting the engine
What’s Included
- Remanufactured Eaton Fuller RTLO-18918B (updated 18918 series) rebuilt to factory spec by Discount Parts Exchange - DPX
- 12-month, unlimited-mileage parts-only warranty
- Inspected for correct gear mesh and shift quality
Related Products
| Part Number |
Mfr |
Description |
| A6918 |
Eaton Fuller |
Pistol Grip Shift Knob – Fuller Logo Version (No Pattern) |

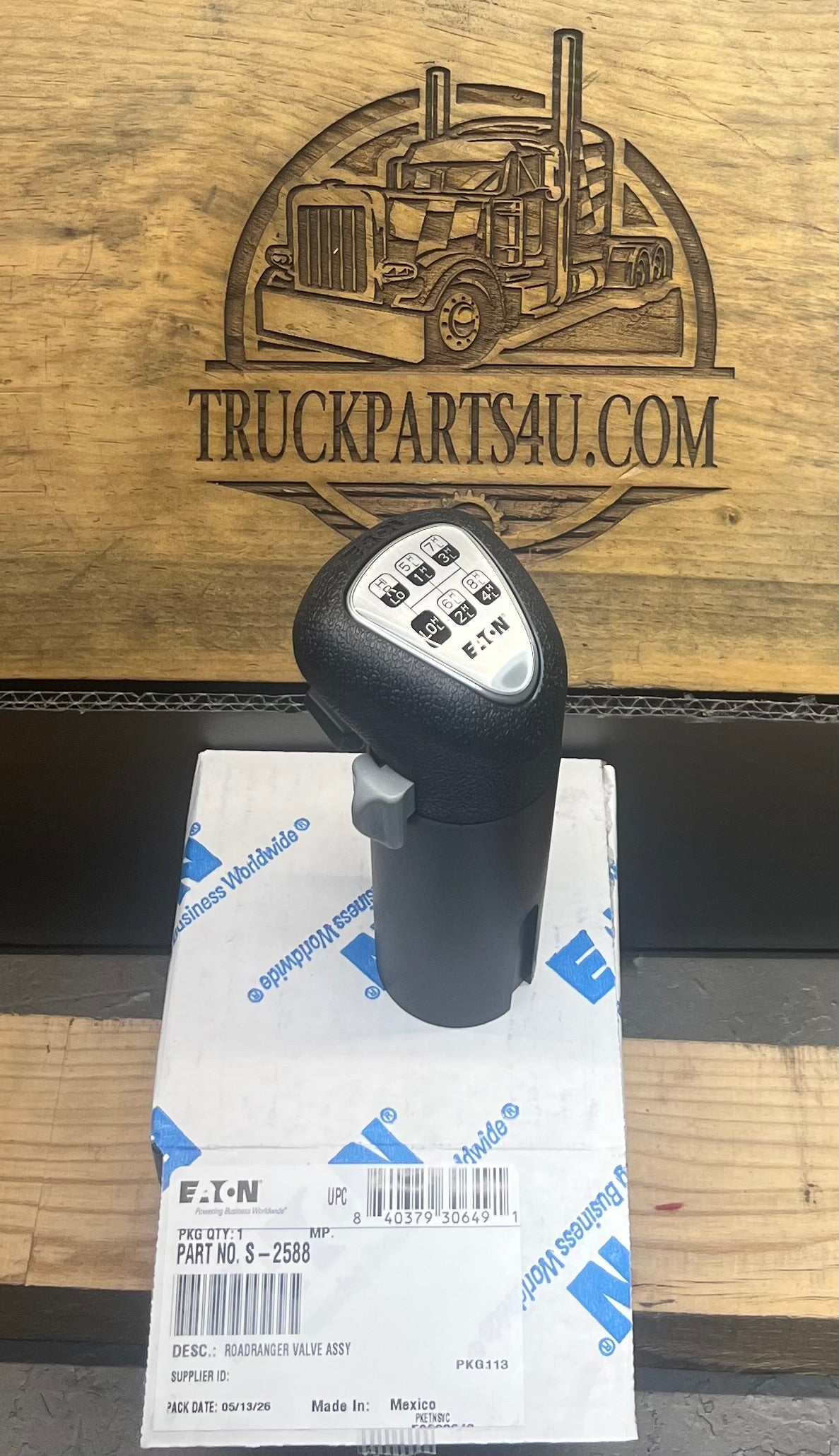

| S2588 |
Eaton Fuller |
Pistol Grip Shift Knob with Printed Shift Pattern |
Recommended Lubricant
Use Eaton PS-386 approved synthetic SAE 50 manual transmission fluid (e.g., Roadranger SAE 50). Do not use engine oil. Maintain proper level and service intervals per Eaton guidelines.
Core Exchange Policy
- Sold on exchange: Returned core must be like-for-like, complete, and rebuildable
- Deductions may apply for: Cracked housings, burnt/missing internals, low-lube or water damage, or non-matching cores
Shipping
- Ships via LTL motor freight to verified commercial addresses only
- Forklift or dock required (liftgate available upon request)
- No residential delivery
Image Disclaimer
Photos shown are representative; final appearance may vary by ratio and casting revision.
Call to Order
Call Discount Parts Exchange - DPX for pricing and availability: 419-522-3320
DPX Drivetrain Tools Hub
Free tools built by rebuilders for truckers and fleets — Road Speed & Ratio Calculator, PTO shimming procedure, gear ratio comparison charts, and our full IPL library for instant parts identification.
Open DPX Drivetrain Tools Hub →
Reference Documentation
For detailed exploded-view diagrams, part numbers, and component identification, download the official Eaton® Fuller RTLO-18918B Transmission Illustrated Parts List (EN-US version).
📄 Download Eaton Fuller RTLO-18918B Transmission Illustrated Parts List (PDF)
