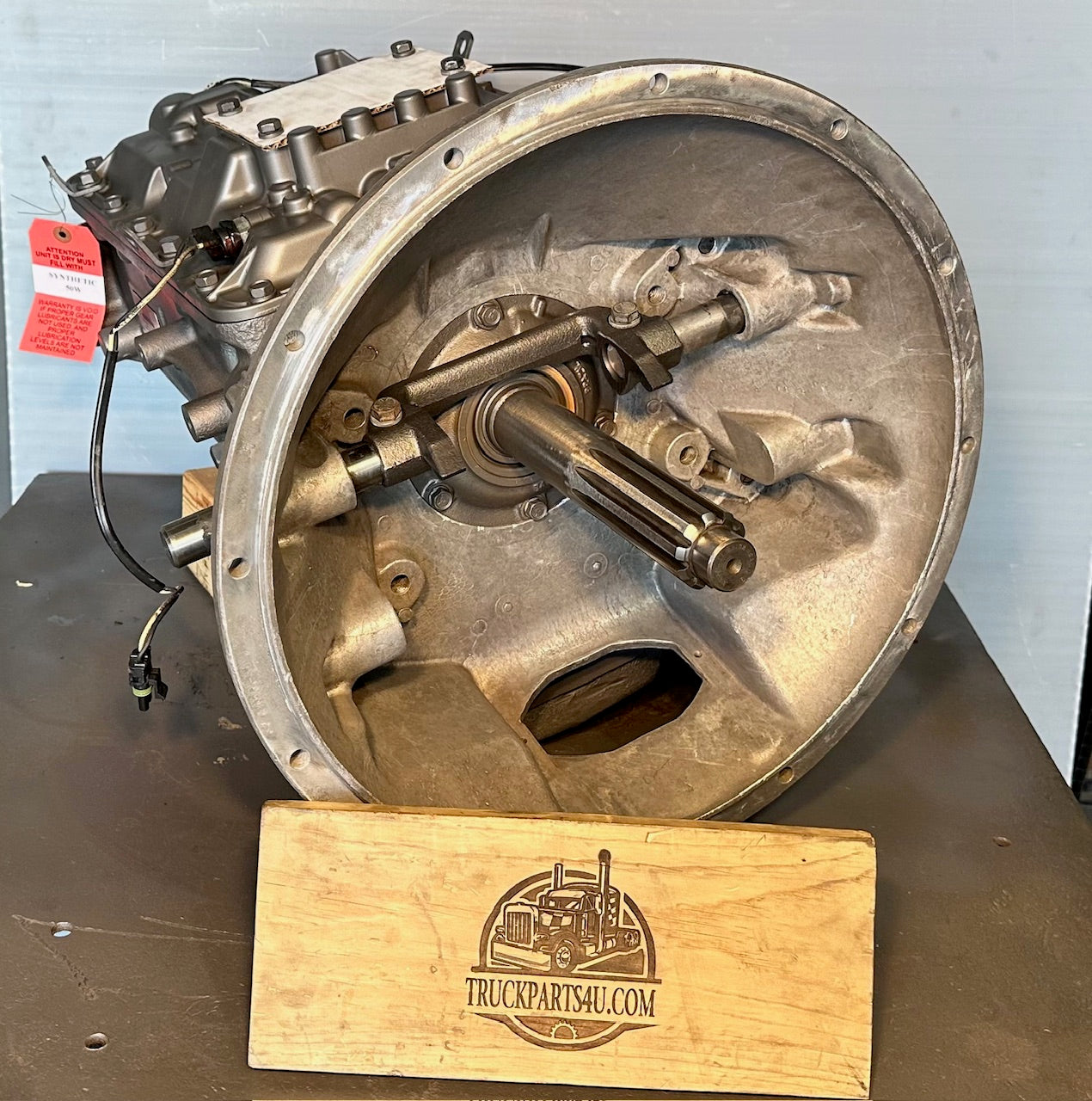

• Remanufactured Eaton Fuller FS5406A (FS5406) 6-speed, front-right angle showing SAE #2 bellhousing, case ribs, and PTO port — TA-C15-036249 by Discount Parts Exchange.
  • FS5406A single-countershaft transmission, front-left angle with SAE #2 bellhousing and a Chelsea PTO mounted on the side PTO pad — remanufactured TA-C15-036249 by Discount Parts Exchange.

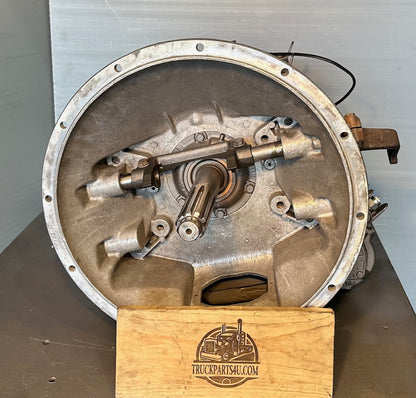

  • Straight-on front view of Eaton Fuller FS5406A (FS5406) showing SAE #2 bellhousing opening and input shaft; remanufactured TA-C15-036249 by Discount Parts Exchange.
1 3

FS5406A

Quote Only, Call For Price - 419-522-3320

FS5406A Eaton Fuller 6-Speed Transmission | Single Countershaft | Reman by DPE (FS5406)

FS5406A Eaton Fuller 6-Speed Transmission | Single Countershaft | Reman by DPE (FS5406)

FS5406A | Eaton Fuller 6-Speed Transmission (Single Countershaft) — Remanufactured by DPE

Summary: Professionally remanufactured Eaton Fuller FS5406A synchronized 6-speed manual transmission, built in-house by Discount Parts Exchange (DPE) using top-tier OEM and aftermarket components. Ideal for Class 6–7 vocational and utility trucks, including fleets such as Asplundh and Nelson Tree Service. Core exchange required.

Specs & Features

  • Model: FS-5406A (also searched as FS5406 / FS-5406A)
  • Assembly P/N: Fuller TA-C15-036249
  • Transmission Type: Synchronized manual, 6 forward / 1 reverse
  • Design: Single countershaft
  • Torque Capacity: 560 lb-ft (approx.)
  • Top Gear: 1.00 (direct)
  • Overall Length: 25.6 in (SAE #2 bellhousing)
  • Approx. Weight: 359 lb (dry)
  • PTO Openings: Left & right, 6-bolt; countershaft-driven (~52% engine speed)
  • Applications: Class 6–7 vocational & utility trucks; bucket/forestry/service fleets

Gear Ratios

1st: 9.01  |  2nd: 5.27  |  3rd: 3.22  |  4th: 2.04  |  5th: 1.36  |  6th: 1.00  |  Reverse: 8.63

PTO Details

  • Mounting: Dual 6-bolt (left & right)
  • Drive: Countershaft-driven
  • PTO Speed: ~52% of engine speed (typical)
  • Service: PTO rebuilding & setup available (Chelsea/Muncie) — call for details

Lubricant & Fill

  • Recommended Oil: SAE 50 synthetic meeting Eaton PS-386 (or equivalent)
  • Capacity: ~19.5 pints (~9 L)
  • Fill Level: To the bottom of the fill port (verify per service manual)

What’s Included

  • Remanufactured FS5406A 6-speed transmission
  • Set up for reliable shift quality and long service life
  • Backed by expert tech support from DPE

Core Exchange Policy

  • Exchange Required: Like-for-like, complete, and rebuildable core
  • Possible Deductions: Cracked/damaged housings, missing or burnt internals, water/low-lube damage, non-matching cores
  • Preparation: Drain and palletize the core for pickup

Shipping Policy

  • Method: LTL motor freight to verified commercial addresses
  • Requirements: Forklift or loading dock; liftgate available on request
  • No Residential Delivery

Warranty

12-month, unlimited-mileage parts warranty. No labor reimbursement. See terms or call with questions.

Call to Order

Call: 419-522-3320  |  Location: Mansfield, Ohio

Heavy-Duty Solutions — Built to Perform. Trusted to Last.

View full details
