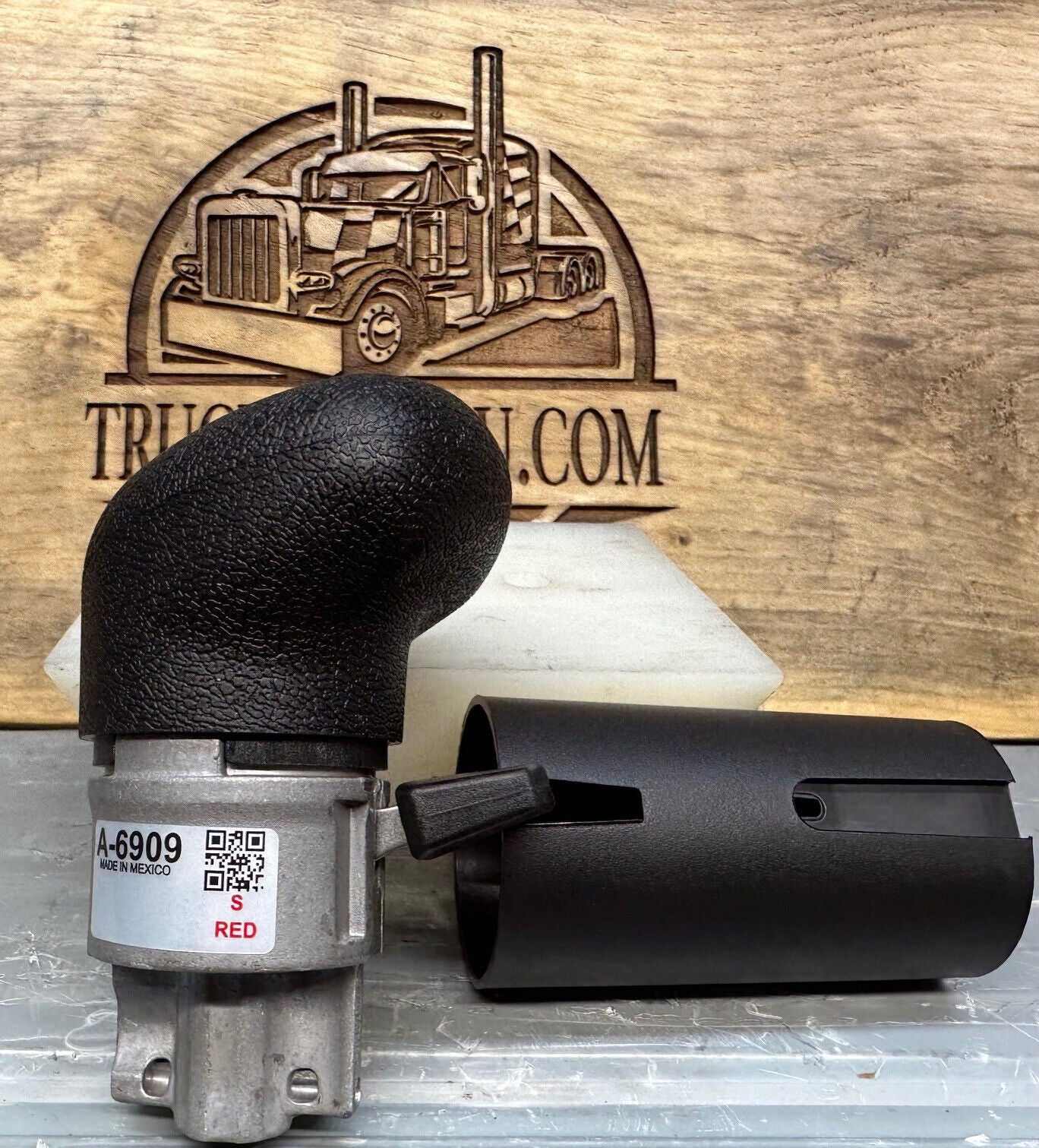

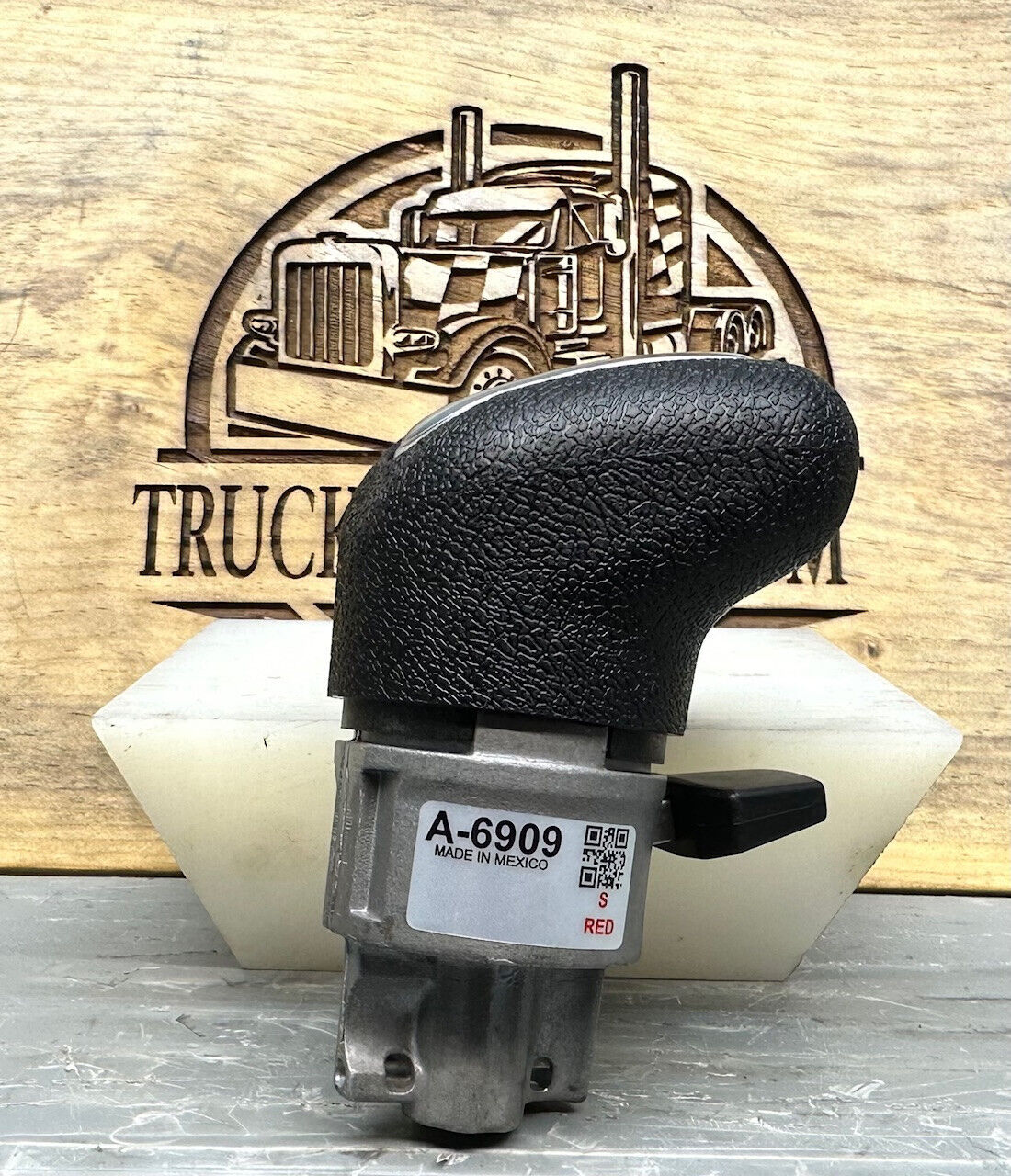

A6909 Eaton Fuller Pistol Grip Shift Knob – 9 & 10 Speed Roadranger | New Genuine OEM

New Genuine Eaton Fuller A6909 — Complete pistol-grip master shift knob and air valve assembly for 9-speed and 10-speed Roadranger transmissions.

This is the standard Fuller logo style shift knob (not the printed shift pattern version). It features a comfortable ergonomic pistol grip with a reliable black range selector flipper for Hi/Low range selection on the auxiliary section. (The version with the printed shift pattern is S2543.)

In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.

Call 419-522-3320 for current pricing and availability.

Key Specifications

• Part Number: A6909 (also A6909B, A-5010, A5010)
• Style: Pistol Grip Master Shift Knob with Fuller Logo (Standard OEM Style)
• Range Selector: Black Flipper (Up/Down – Hi/Low Range on Auxiliary Section)
• Mounting: 1/2"-13 threaded main port (threads onto shifter lever) + Includes (2) mounting screws
• Air Fittings: Not included – Bottom ports are 1/16" NPT (Use Fuller 84005 fittings for 5/32" air tubing)
• Warranty: Backed by Eaton Fuller Manufacturer Warranty
• Condition: New Genuine Eaton Fuller OEM – Ships in original packaging

How the A6909 Roadranger Valve Works

Low Range Operation (Range Lever Down)

Constant air pressure is supplied from the slave valve to the Roadranger valve inlet or "S" port (1). In LO range (range lever down), air passes through the lever and out the Roadranger valve outlet or "P" port (3).

High Range Operation (Range Lever Up)

In HI range (range lever up) the lever prevents the air from passing through the Roadranger valve. Air pressure which was in the outlet line (3) is exhausted out the Roadranger valve "E" port.

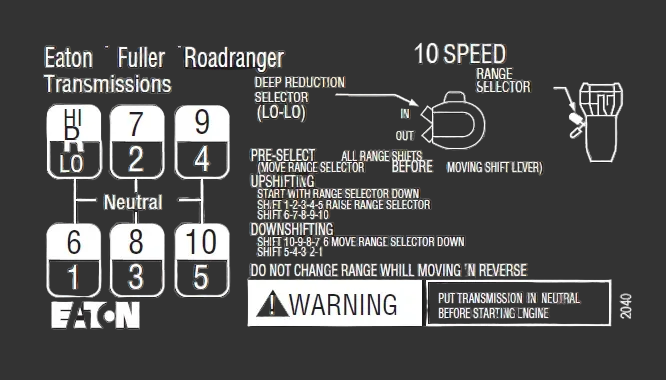

9 & 10-Speed Roadranger Shift Pattern

Important Fitment Note

This A6909 knob is for standard 9 & 10-speed Roadranger transmissions only. It is not compatible with RTLO-10 speeds or Super 10 transmissions (those use the A-6910 shift knob).

Applications & Fitment

Direct replacement for Eaton Fuller Roadranger transmissions including:

• 9-Speed: 12609, 13609, 14609, 16909 and similar models
• 10-Speed: FRO16210C, FRO16210C-IC (Internal Cooler), 13710, 15710, 14210B, 15210, 16210, 17210, 18210 and many A/B/C ratio configurations

Fits All Major Truck Makes

This A6909 shift knob fits any truck equipped with a compatible Eaton Fuller 9-speed or 10-speed Roadranger transmission.

• Peterbilt
• Kenworth
• Freightliner
• International / Navistar
• Volvo
• Mack
• Western Star
• Autocar
• and many others

Note: This is the Fuller logo style knob. The version with the printed shift pattern on top is S2543. This is not the same as the A6913 (13-speed) or A-6915 (15-speed).

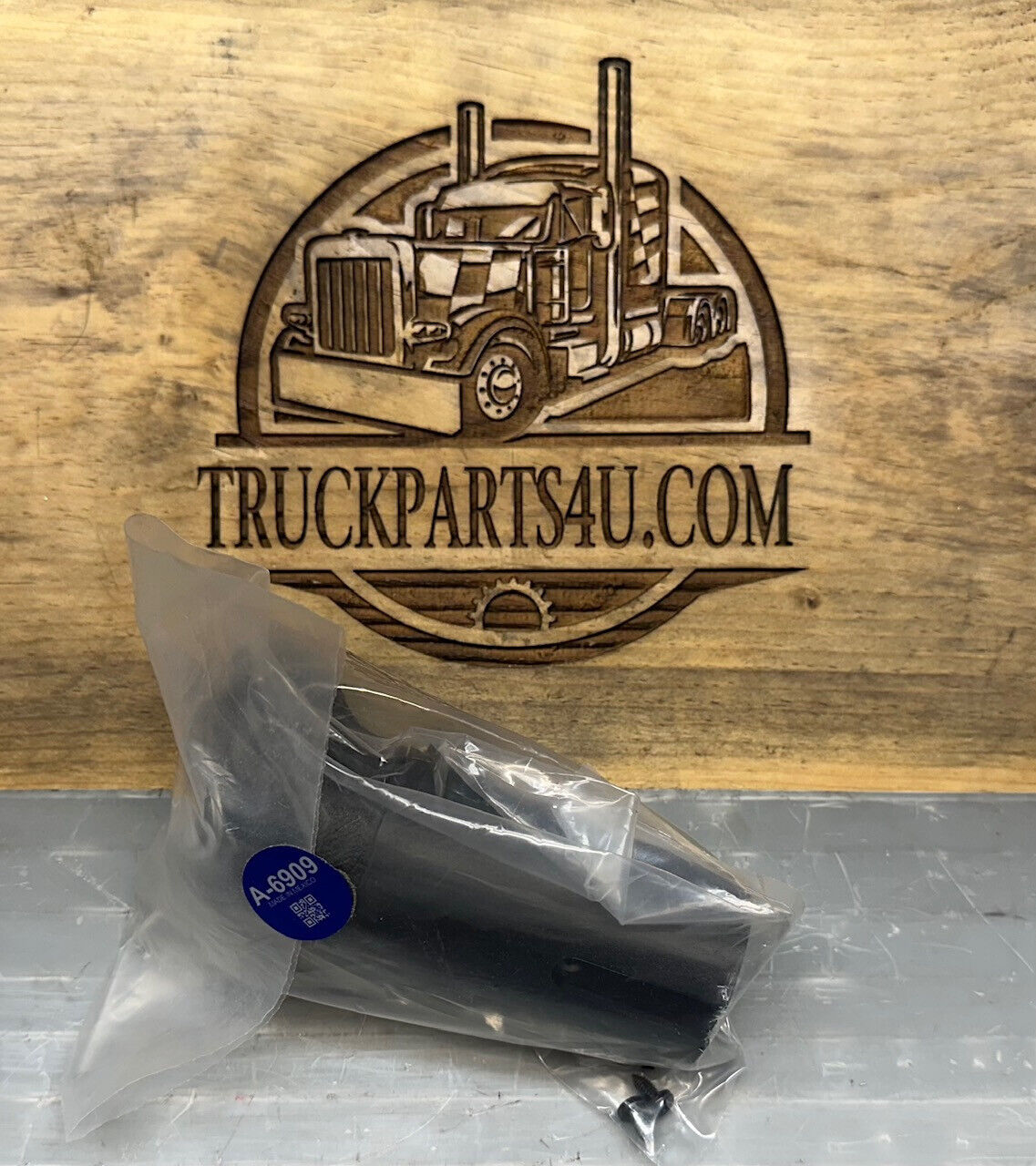

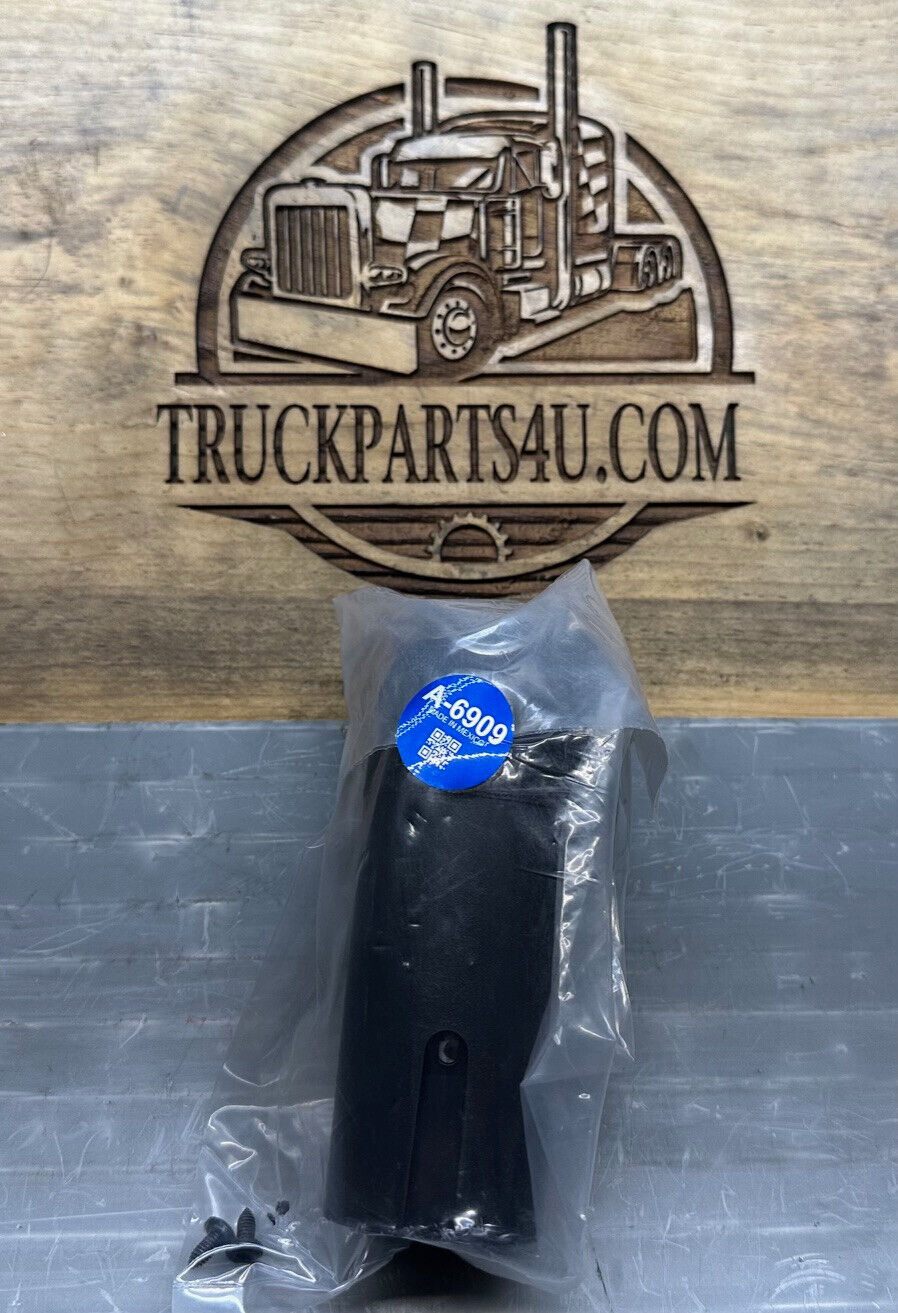

What’s Included

• 1 × Eaton Fuller A6909 Pistol Grip Shift Knob / Valve Assembly
• (2) Mounting screws
• Factory OEM packaging
• Brass air fittings (Fuller 84005 – 1/16" NPT for 5/32" tubing) sold separately
