A35514-6-U-RGC Gearset | Used Genuine Meritor Rockwell AxleTech D100 R5.83

A35514-6 | Rockwell Meritor AxleTech D100 Ring & Pinion Gearset | 5.83 Ratio | Used OEM

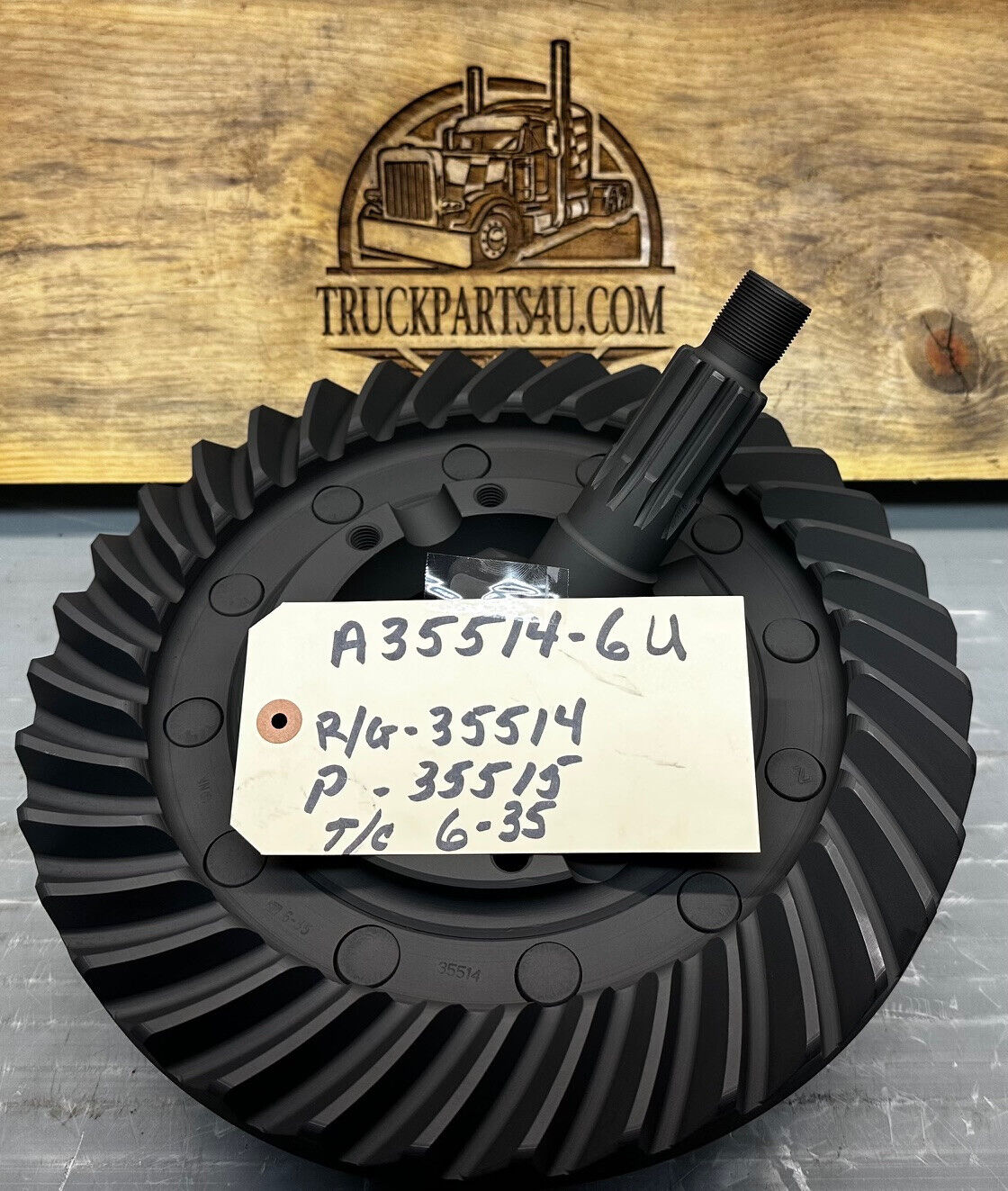

Used Genuine OEM Rockwell / Meritor / AxleTech A35514-6 — Complete 5.83 ratio ring & pinion gearset (35 ring / 6 pinion teeth) for D100 axles. Includes the ring gear riveted to the carrier and matching pinion. Cleaned, inspected, and preserved with dry graphite coating. In stock and ready to ship from Discount Parts Exchange (DPX) in Mansfield, Ohio.

How to Calculate Gear Ratio: Divide the number of teeth on the ring gear by the number of teeth on the pinion gear (e.g., 35 ÷ 6 = 5.83). This is the standard method used by Dana Spicer / Meritor.

Call to confirm availability: 419-522-3320

Key Specifications

• Part Number: A35514-6 (Alt: A35514)
• Manufacturer: Rockwell / Meritor / AxleTech
• Gear Ratio: 5.83 (35 ring / 6 pinion teeth)

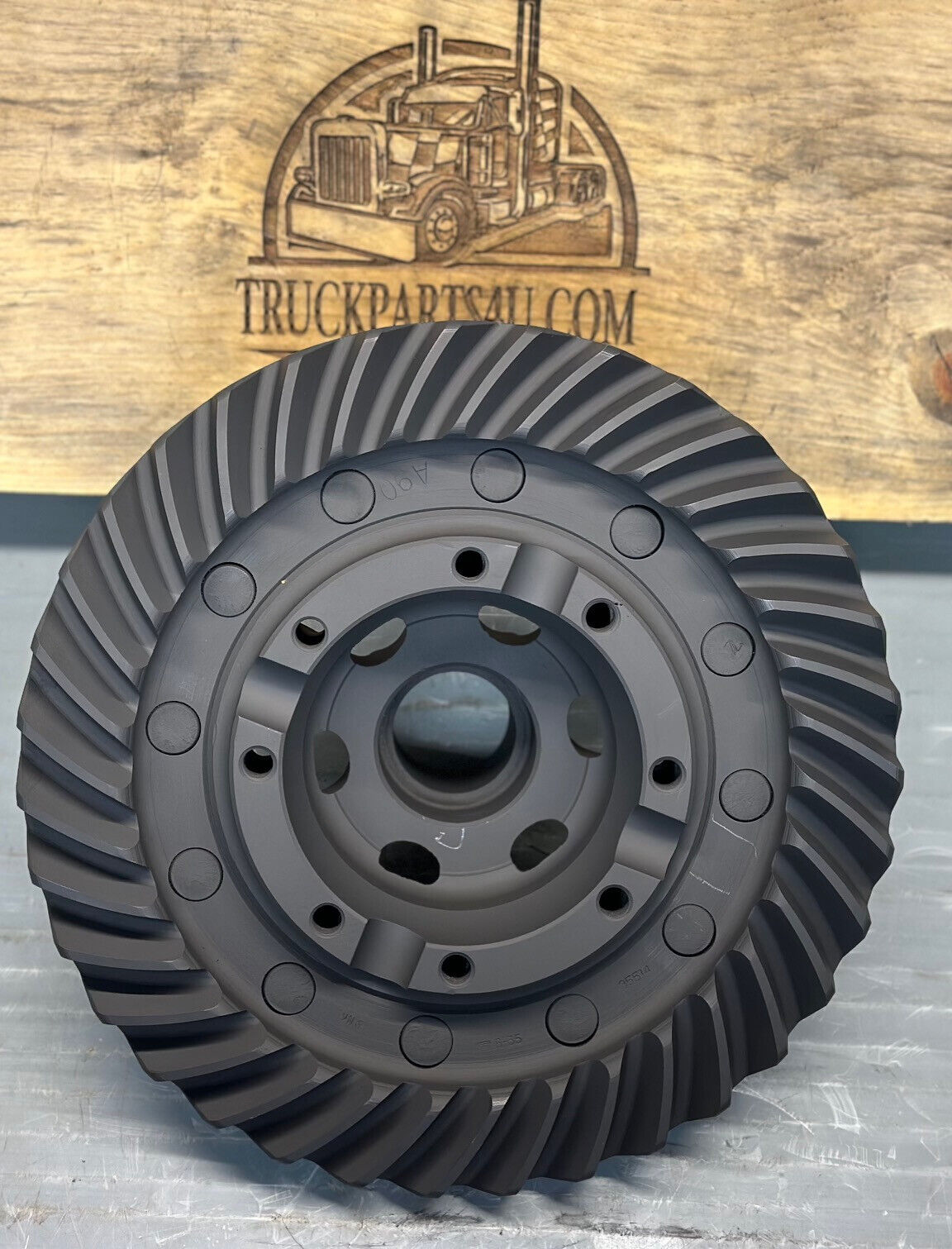

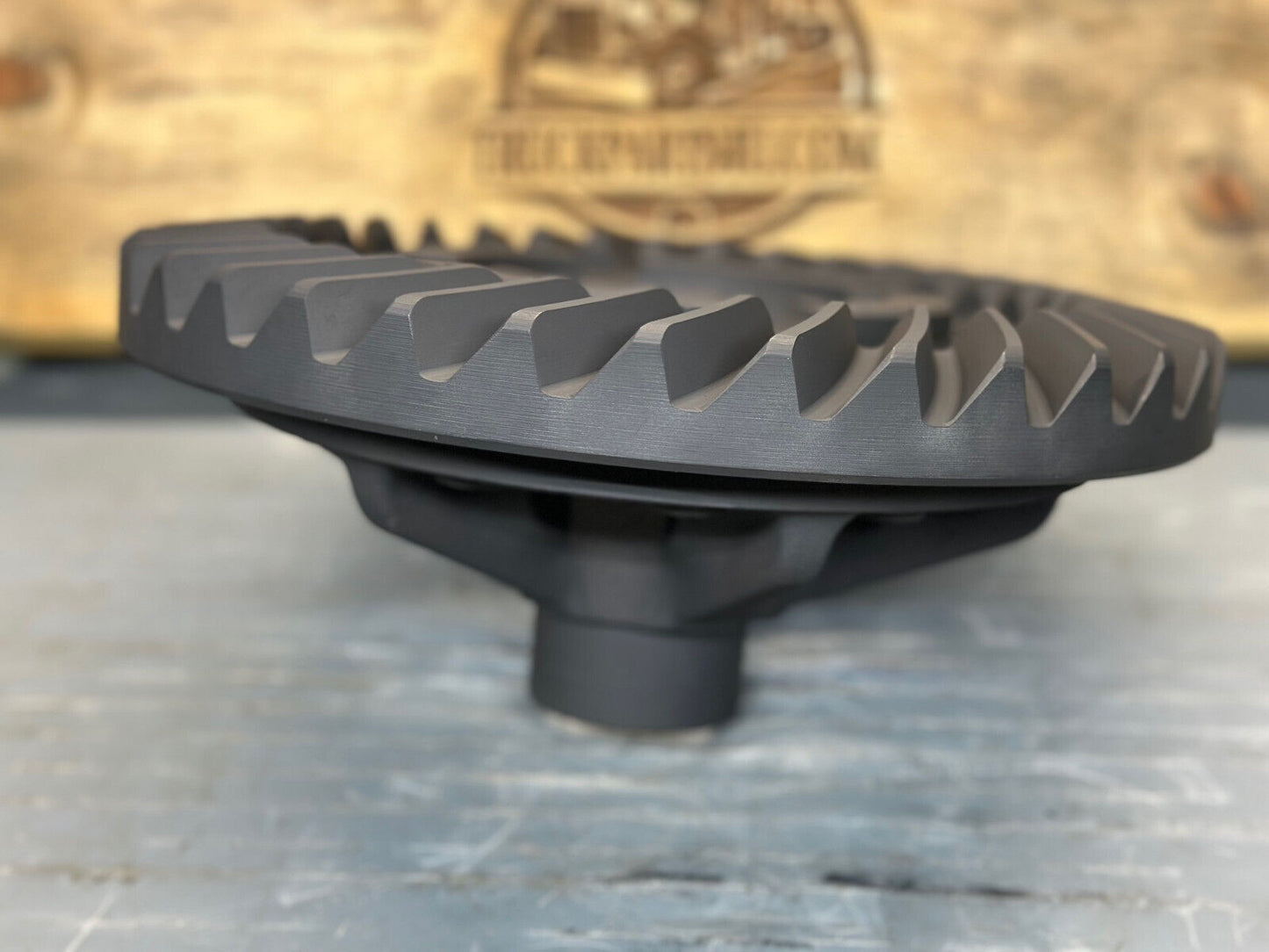

• Ring Gear: 35514 – Riveted to Carrier

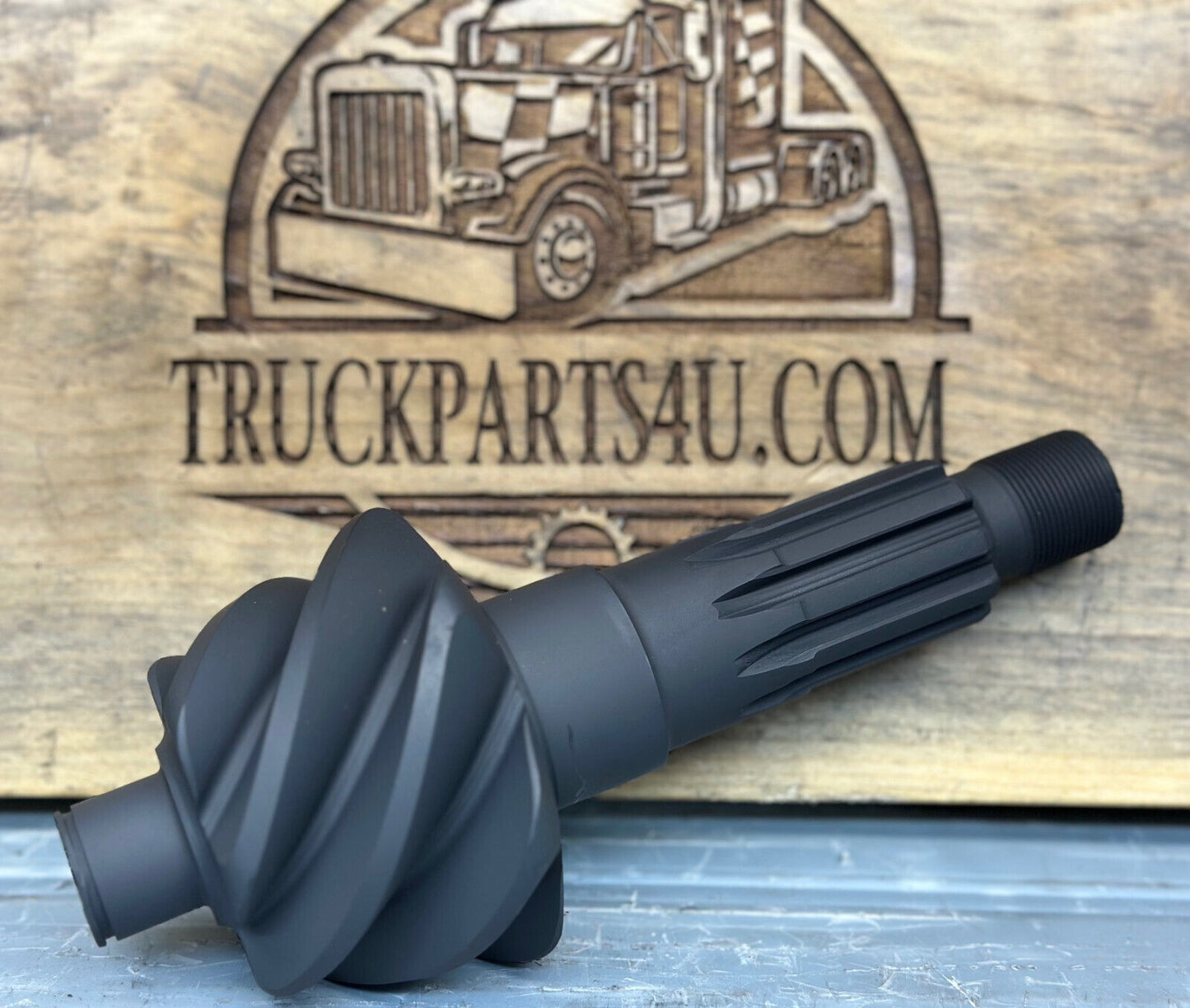

• Pinion: 35515
• Spline Size: 1.375" – 10 spline
• Spigot Bearing Diameter: 0.985"
• Condition: Used OEM – Cleaned, Inspected & Graphite Coated
• Warranty: Sold As-Is, No Warranty

Applications & Fitment

Designed for Rockwell Meritor / AxleTech D100 axles. Commonly used in heavy-duty trucks, construction equipment, and vocational applications.

Important: Verify axle model (D100), current ratio, spline size (1.375"–10), and spigot bearing diameter (0.985") before ordering.

What’s Included

• 1 × Ring Gear Assembly – 35514 (riveted to carrier)
• 1 × Pinion Gear – 35515
• Hardware and pinion nut not included
